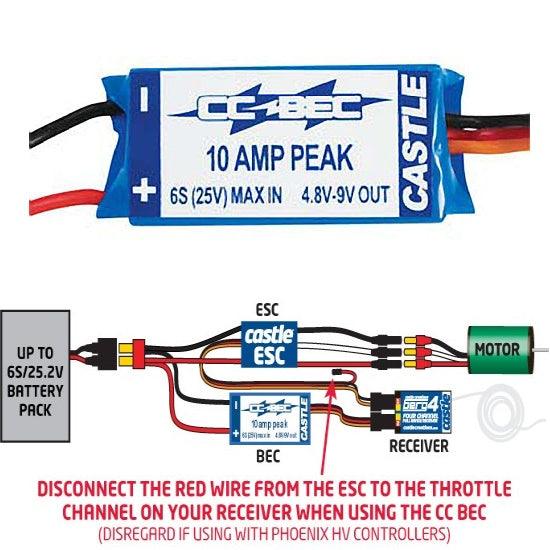

Castle Creations 10 Amp Adjustable BEC Switching Regulator
Features:
- Eliminates the need for a receiver and servo battery pack
- Draws higher voltage from the motor batteries and drops it to a voltage level suitable for the receiver and servos
Includes:
- One CC BEC receiver battery eliminator
Specs:
- Length: 1.2" (30mm)
- Width: .6" (15mm)
- Height: .4" (10mm)
- Weight: .4oz (11g)
- Input voltage: 5V to 25.2V (2S to 6S LiPo)
- Current output: 12 volts input = 7 amps* continuous, 10 amp peak;
- 24 volts input = 5 amps* continuous, 7 amp peak
- *Ratings are determined with a 5mph airflow on the BEC
- Selectable Output: 4.8 - 9.0V via the Castle Link (sold separately)
- Default voltage is 5.1V
