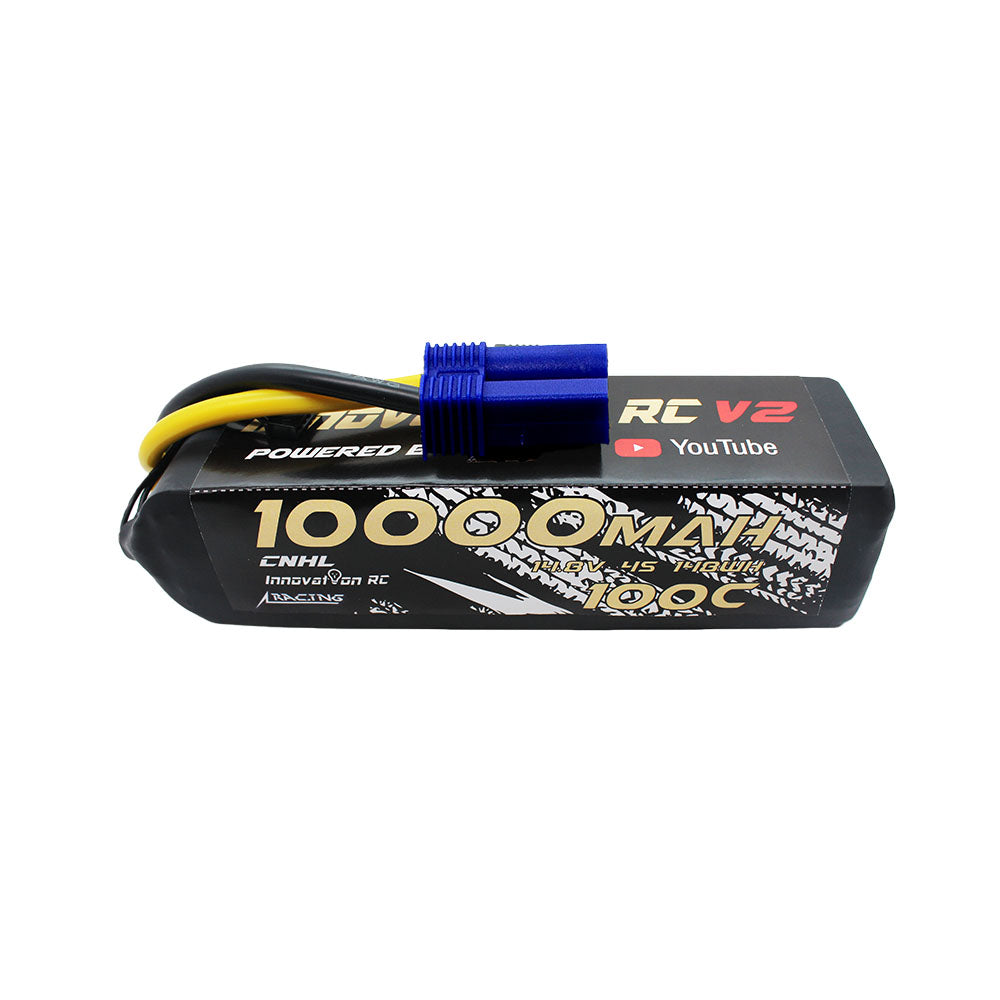

V2.0 Specifications:
- Stock Number: 10001004EC5
- Capacity: 10000mAh
- Voltage: 14.8V /4-Cell / 4S1P
- Discharge Rate: 100C Continual / 200C Burst
- Charge Rate: 5C Max

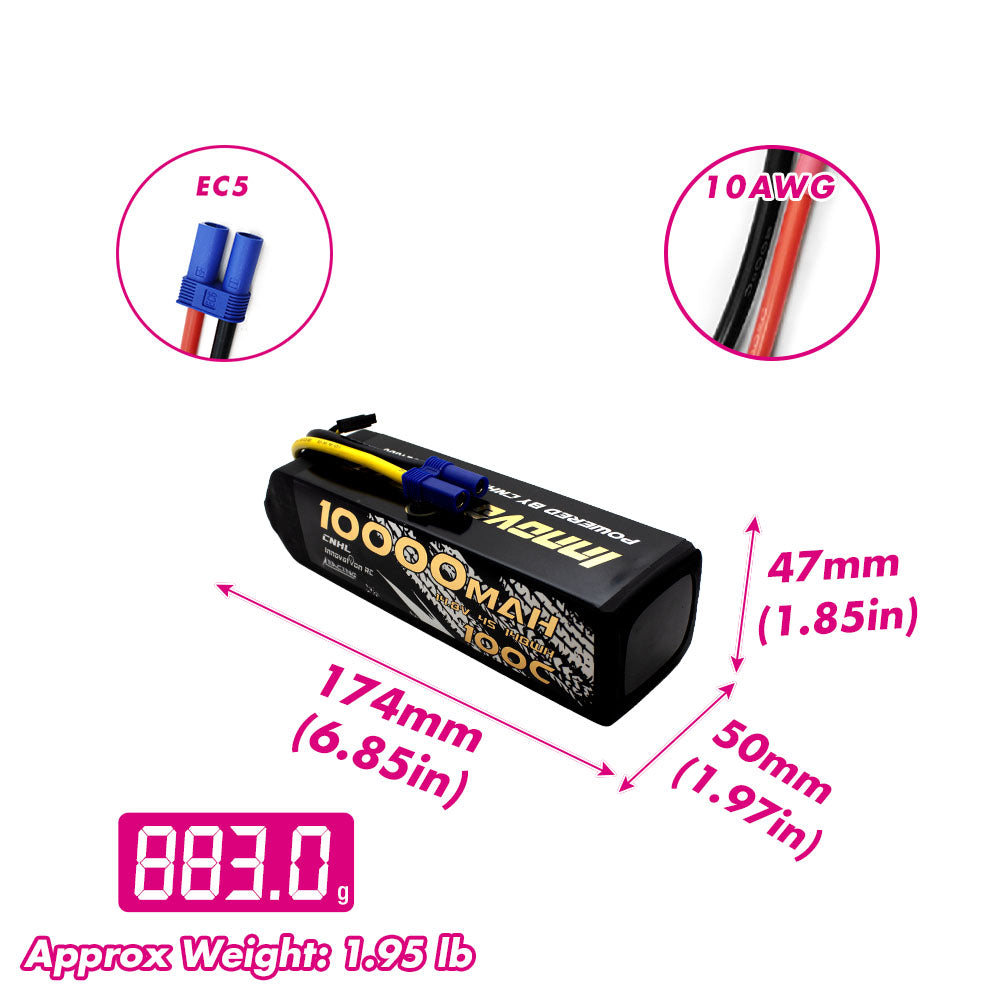

- Size(1-5mm difference): 47X50X174mm
- Approx Weight(±5g) : 883g
- Output Connector: EC5
- Balance Connector: JST / XH
- Wire (AWG):10#

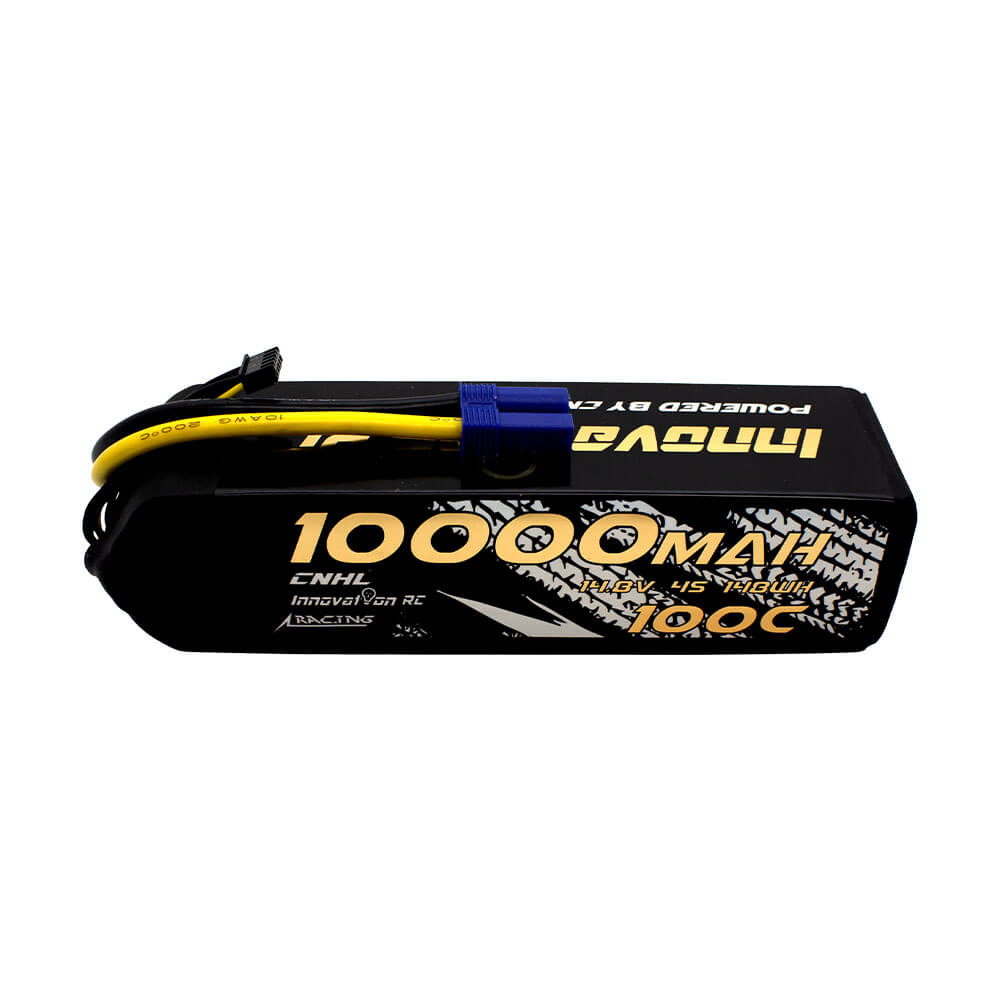

- Package include: CNHL Racing Series 10000mAh 14.8V 4S 100C Lipo Battery with EC5 Plug
V1.0 Specifications:
- Stock Number: 10001004EC5
- Capacity: 10000mAh
- Voltage: 14.8V /4-Cell / 4S1P
- Discharge Rate: 100C Continual / 200C Burst
- Charge Rate: 5C Max
- Size(1-5mm difference): 45X51X174mm
- Approx Weight(±5g) : 835g
- Output Connector: EC5
- Balance Connector: JST / XH
- Wire (AWG):10#
- Package include: CNHL Racing Series 10000mAh 14.8V 4S 100C Lipo Battery with EC5 Plug
Compatible RC Models:
CNHL Innovation RC Series 4s lipo battery 10000mAh 14.8v with Ec5 plug is specially designed for X-Maxx, RC car, rc tank, truck, slash, RC models.Mainly compatible with 1/10 / 1/8 Scale Cars, Trucks, Buggies, Helicopter, Drones, Multicopter, RC airplane, FPV multi-rotor aircract.
⚠️WARNING⚠️
- Do not overcharge, over discharge, short circuit, puncture, crush, disassemble, or expose the battery to water, fire, or excessive heat.
- Charge only with a proper LiPo balance charger. Never exceed 4.2V per cell or discharge below the recommended cutoff voltage. (Normal cell voltage 3.7V~4.2V)
- Stop using or charging the battery immediately if it becomes hot, swells, leaks, emits odor, or behaves abnormally.
- Inspect the battery, connector, balance lead, and cell voltage before use. Do not use if damaged, swollen, punctured, leaking, or if cell voltage is abnormal.
- Store batteries in a cool, dry place away from metal objects, direct sunlight, and flammable materials. Keep batteries at storage voltage for long term storage.
- Improper handling of LiPo batteries may result in fire, personal injury, or property damage. Always follow standard LiPo safety procedures during charging, storage, transport, and use.
Notice:
- Please confirm voltage, connector type, battery dimensions, and acceptable weight range before purchasing to ensure compatibility with your model and electronics.
- Due to manual measurement, slight variations in size and weight may occur.
- If a new battery does not initially deliver full performance, complete several normal balance charge and discharge cycles to help the cells reach optimal performance.
